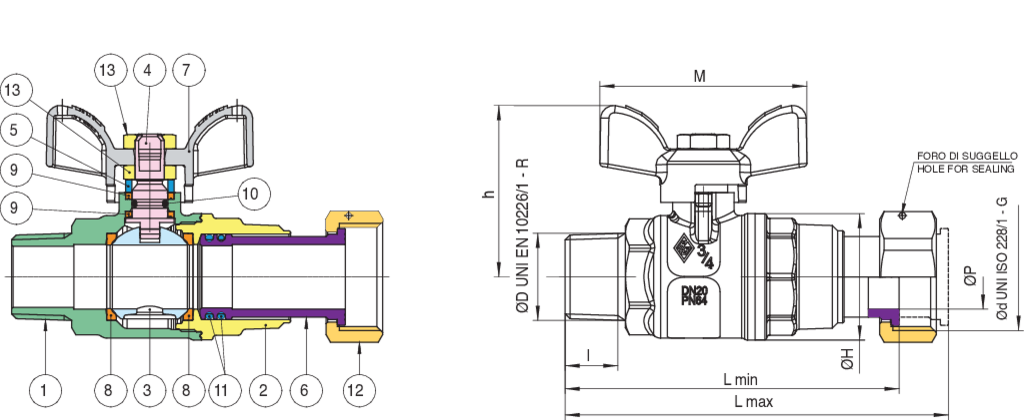

| 1 | BODY | BRASS CW617N UNI EN 12420 | 1 |
| 2 | END CONNECTION | BRASS CW617N UNI EN 12420 | 1 |
| 3 | BALL | BRASS CW617N UNI EN 12420 | 1 |
| 4 | STEM | BRASS CW614N UNI EN 12164 | 1 |
| 5 | PACKING GLAND | BRASS CW614N UNI EN 12164 | 1 |
| 6 | UNION TAIL | BRASS CW614N UNI EN 12164 | 1 |
| 7 | T-HANDLE | ALUMINIUM EN-AC 46100 | 1 |
| 8 | BALL SEAT | PTFE | 2 |
| 9 | STEM SEAL/THRUST WASHER | PTFE | 2 |
| 10 | O-RING | NBR | 1 |
| 11 | O-RING | NBR | 2 |
| 12 | NUT | BRASS CW617N UNI EN 12420 | 1 |
| 13 | NUT | STEEL CL 04 | 2 |
